Ürün Kodu: OPAX-334

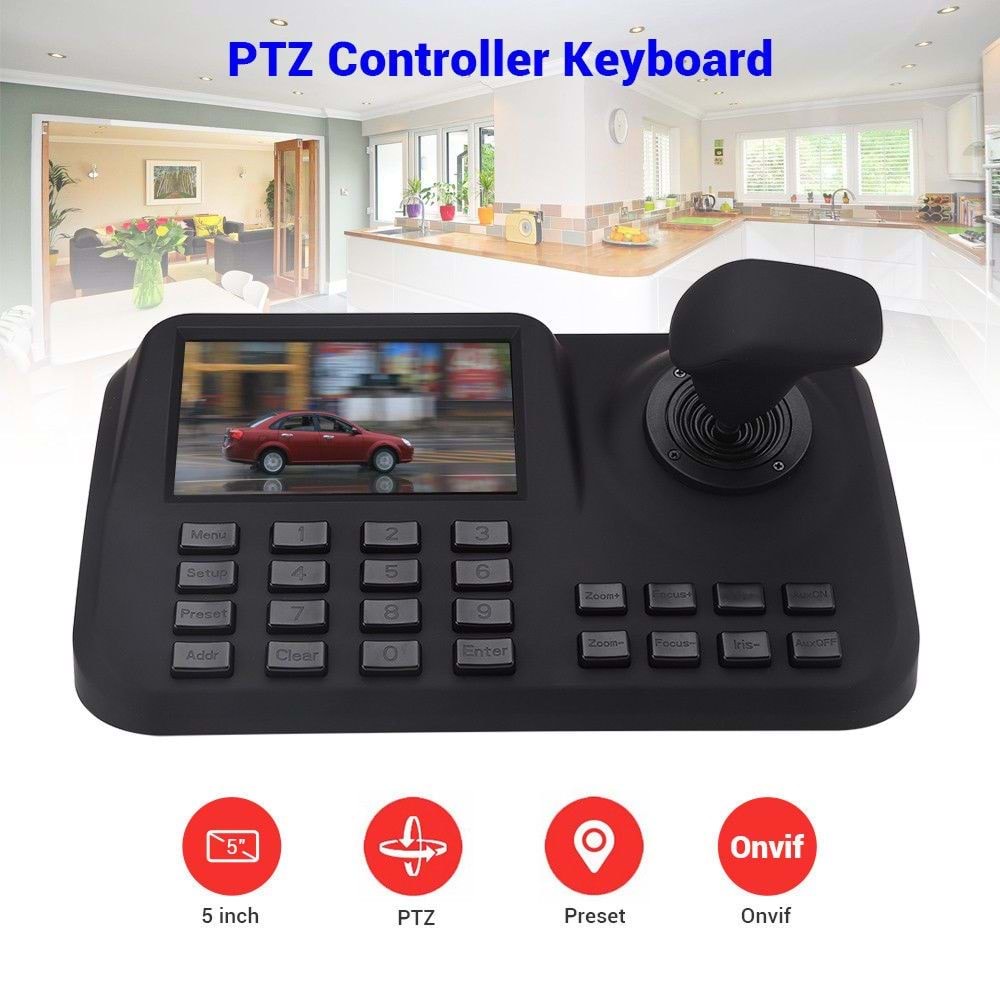

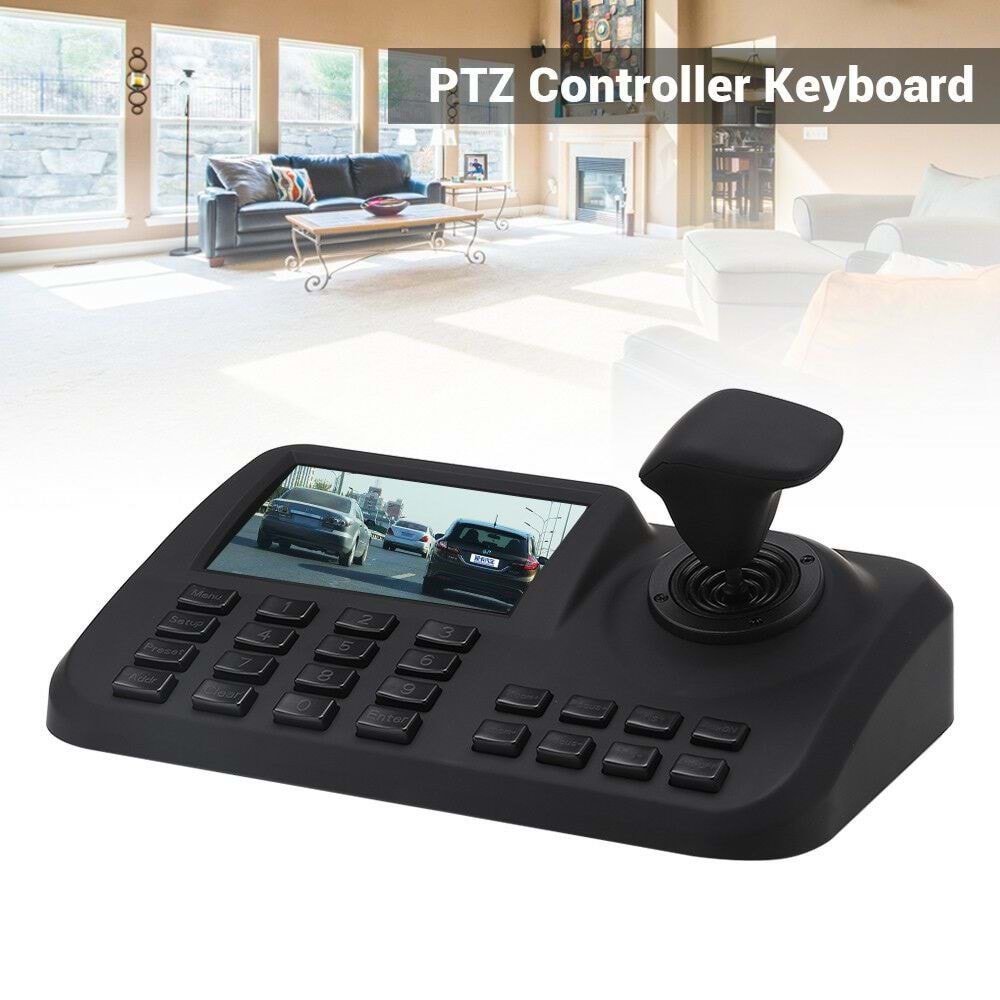

OPAX-334 IP KEYBOARD LCD EKRANLI IP SPEED DOME KAMERA KONTROL CİHAZI HDMI ÇIKIŞLI
Main Features :
Supports Tour, 360 Scan and A-B Scan and so on function
ONVIF2.4, play and plug, automatically add and allocate IP address by keyboard
Standard equipped with dimensional control, 1-64 grade speed limit, precise position, control sensitively
3D jostick,Chinese and English switch
To support USB,HDMI interface output
5?? colorful LCD display , real display image on control device
Technical Parameter:
| Model NO. | OPAX-334 |
| Product | Network Keyboard |
| ONVIF | 2.4 |
| Control way | Network |
| Power Supply | DC12V/2000MA |
| Operating Humidity | ≤90% Non Condensing |
| Interface | 1xRJ45 , 2xRS485 (reserved) , 1xDC12V power , 1xHDMI , 1xUSB |
| Baud Rate | 9600bps |
| Joystick | Vector variable speed joystick |
| Display screen | 5'' LED |
| Communication Distance | depend on network cable |
| Control Camera Quantity | No limited (single screen display ) |
| OSD Menu | English |
| Operating Temperature | -20℃～+55℃ |
| Product size | 260mm*160mm*48mm |
